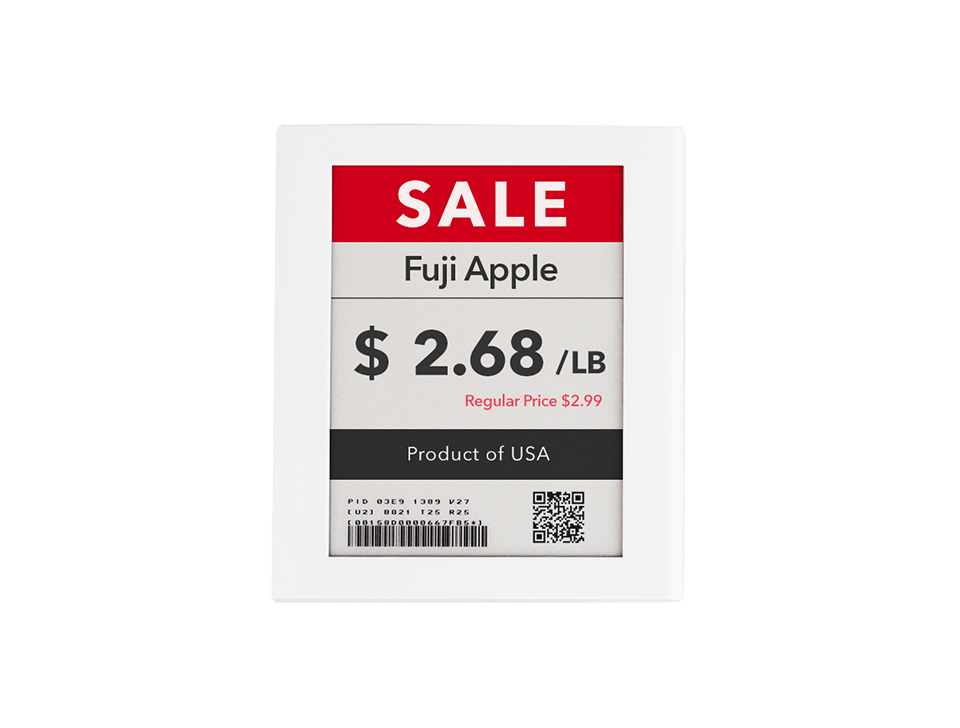

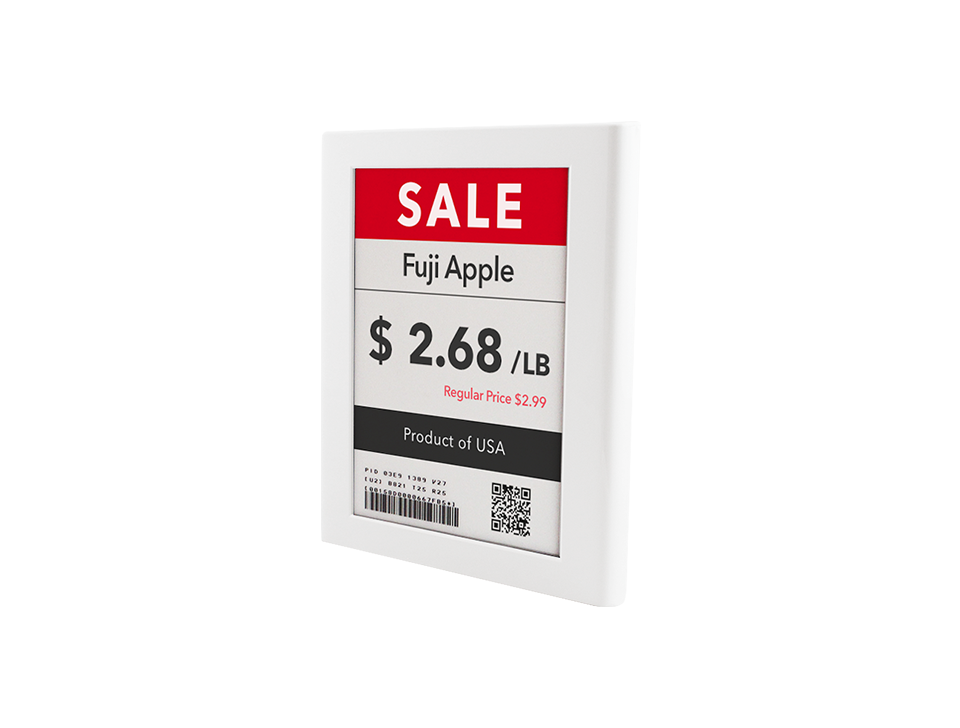

ESL565C

(5.65-INCH / COLOR)

The TeamUC 5.65″ ESL565C is a low-powered, easy-to-read electronic shelf tag whose display can easily be updated from a remote area such as a back office or a central location. Embedded with E Ink technology, its screen is gentle on the eyes and is easy-to-read even under direct sunlight. The ESL565C is environment-friendly because it saves paper by not printing tags as well as business-friendly because labor isn’t needed for manually changing them.



The ESL565C is perfectly suited for use in retail by giving businesses the ability to update pricing as often as they need, and to display promotions, inventory levels, and more. For those in the packaging and shipping industry, the ESL565C can be used to efficiently manage their inventories and transform their workspace into a Smart Warehouse. Usher in the future with this next generation tag.

FEATURES:

  • 3-Color Black/White/Red display
  • Low power consumption
  • Remotely updateable
  • Built-in battery monitor
  • 5-Year battery life with three updates per day
  • Slim and compact size
  • Superior readability under all lighting conditions
  • NFC Support (Optional)



APPLICATIONS

SPECIFICATIONS

CONFIGURATIONS

PACKAGING

RELATED ITEMS

APPLICATIONS

SPECIFICATIONS

HARDWARE DESCRIPTION
 Display 5.65″
Resolution  600 x 448
Color Black/White/Red
DPI 132
Wireless Interface Zigbee (2.4GHz)
RSSI (Radio Strength Signal Index) On display while development
HARDWARE DESCRIPTION
Battery Type AAA*4pcs
Battery Changeable Yes
Operating Voltage 3V
Operating Temperature 0~40°C
Dimension (WxHxD mm) 140.7 x 121 x 20.6 mm
Weight 215.9g/0.476lb (including battery)

CONFIGURATIONS

MODEL DESCRIPTION
 ESL565C 5.65”     Price Tag Black / White / Red

DIMENSIONS



   6.25″(W) x 6.25″(L) x 0.5″(H)
   Weight: 0.5 lbs.
